Katool KT-AM120SD 12,000lbs Two Post Lift

Katool Automotive Equipment KT-AM120SD Two Post Lift

The Katool Automotive Equipment KT-AM120SD Two Post Lift is a heavy-duty, professional-grade lift built to handle demanding service work with strength, stability, and efficiency. With a 12,000 lb lifting capacity, this clear-floor two-post lift is designed to service a wide range of vehicles, including cars, trucks, and SUVs. Its asymmetric arm configuration helps improve vehicle positioning and door access, while the single-point lock release system supports convenient day-to-day operation.

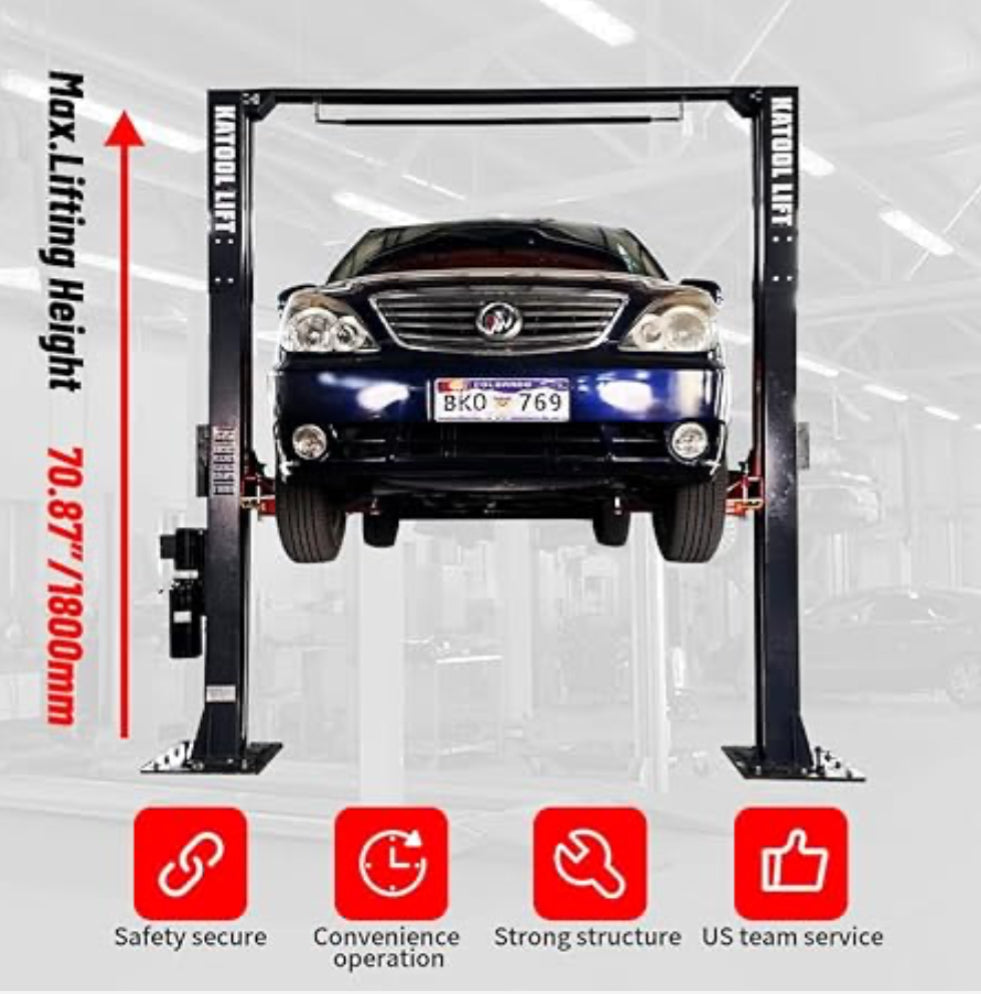

Designed for commercial shops and serious service environments, the KT-AM120SD combines lifting power with practical usability. Public listings describe a 220V single-phase hydraulic system, with some sellers also noting an optional 110V configuration, plus a low 4.25–4.33 inch minimum pad height and approximately 70.86–70.87 inch maximum lifting height, making it suitable for both lower vehicles and taller service work.

Key Features

• 12,000 lb lifting capacity for cars, trucks, and SUVs

• Asymmetric arm design for easier vehicle positioning and door clearance

• Single-point lock release for efficient operation

• Clear-floor design for improved workspace access under the vehicle

• Low pad height for servicing a wider range of vehicles

• Built for professional repair shops, service centers, and fleet use

• Heavy-duty hydraulic lifting performance for daily shop operation

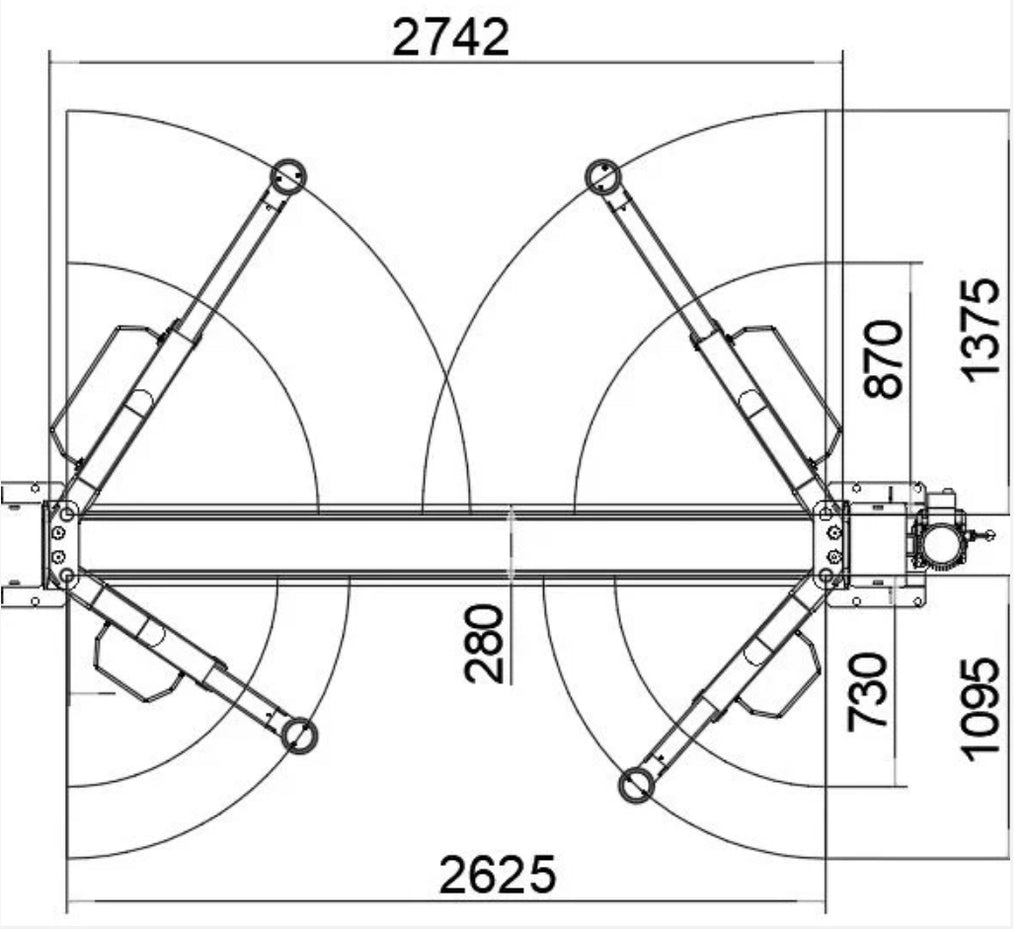

Spec Sheet

Installation Requirements

• Minimum concrete thickness: 5.9 in / 150 mm

• Minimum concrete strength: 3,000 PSI
